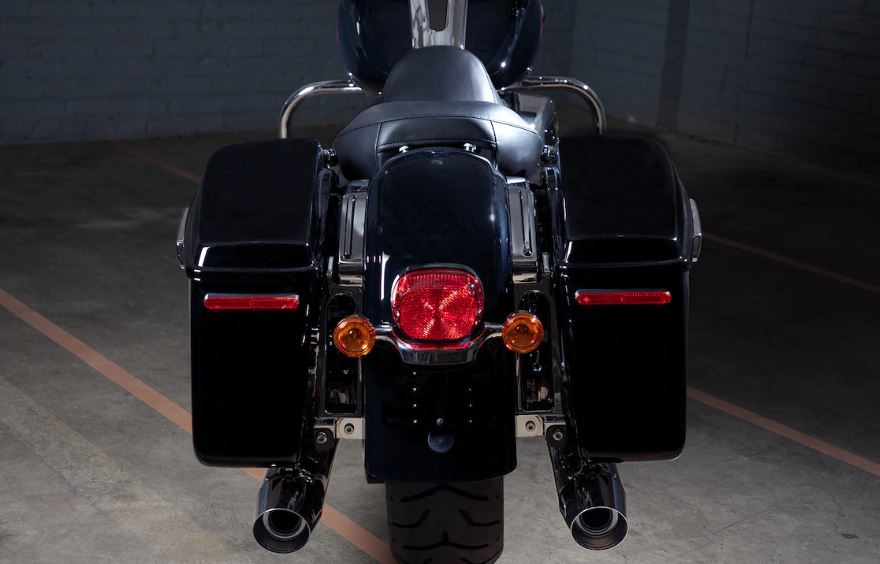

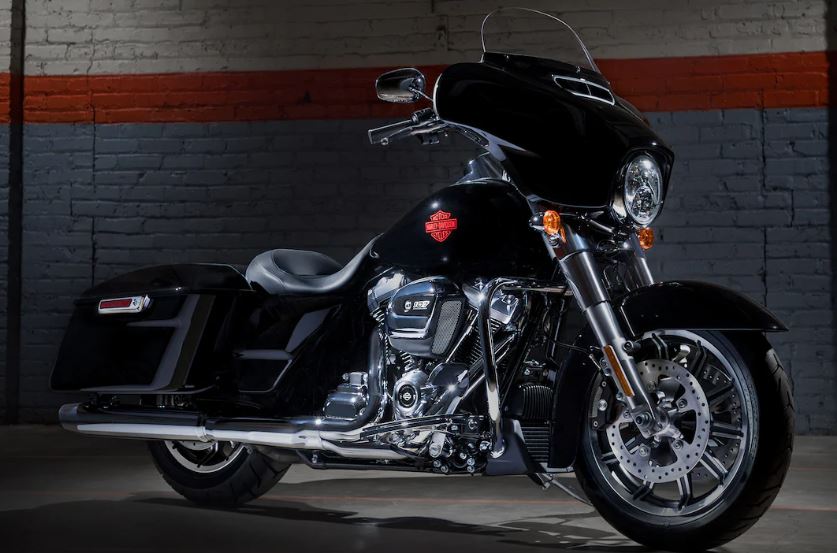

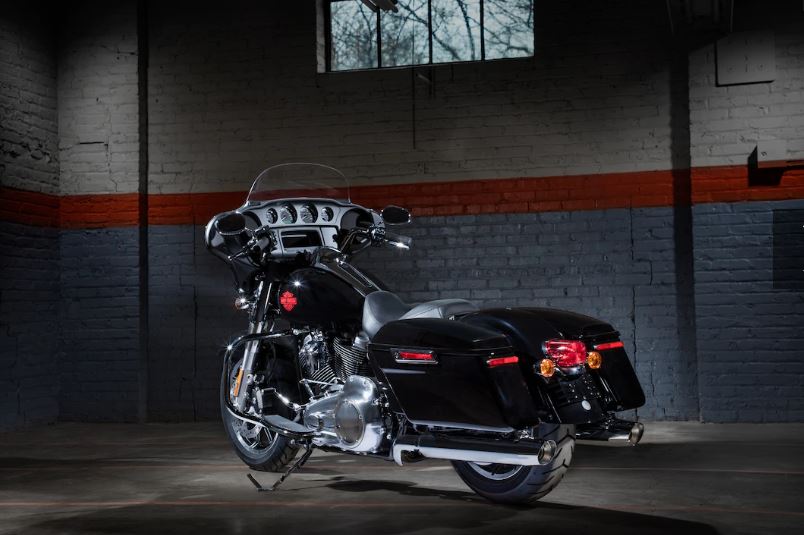

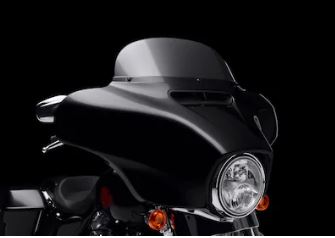

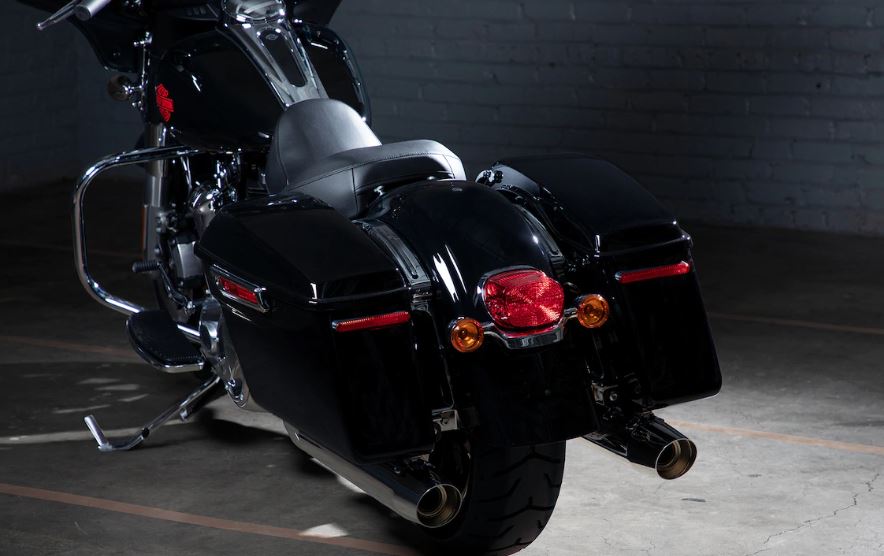

Model for touring supremacy. The Milwaukee-Eight 107 engine makes it possible to unleash all of the power and torque. Then leave yourself in the wind and keep running.Harley – Davidson who entitled “Opportunity for all, All for Freedom (for everything for opportunity, for all individuals).” Equipped with Batwing Fairing, Chrome Trim, Saddle Bag and Cast Aluminum Wheel, reasonable for wind weight decrease, which is a beginning stage of the tooling family, the 2019 “Electra Glide Standard” is a customary.While compatibility shading mix and present day styling, it tends to be said that it is another tooling standard model that completely seeks after straightforwardness.

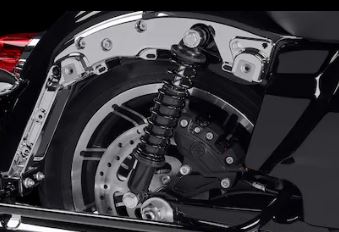

So as to understand a value extend simple to buy as a standard form, Electra Glide Standard chooses standard gear. Voyage control, manual emulsion back safeguard, 49 mm front fork with double bowing valve suspension, ABS mounted Reflex ™ connected brake, security framework and others as standard hardware, while monochrome advancement of clear dark and infotainment Ment framework (BOOM ™! BOX GTS) isn’t introduced. You can appreciate it as an insignificant visiting model as it seems to be, or as a base of a custom model you like, you can appreciate it also.

  • VIVID BLACK¥ 2,905,200

Engine

ads

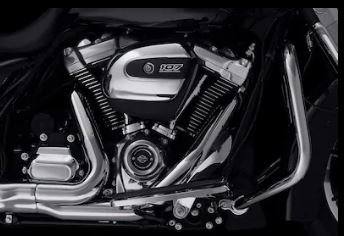

  • ENGINEMilwaukee-Eight ® 107
  • BORE100 mm
  • STROKE111 mm
  • DISPLACEMENT1,745 cc
  • COMPRESSION RATIO10.0: 1
  • FUEL SYSTEMElectronic Sequential Port Fuel Injection (ESPFI)
  • EXHAUSTChrome, 2-1-2 dual exhaust with tapered muffler

Dimension

  • FULL LENGTH2,400 mm

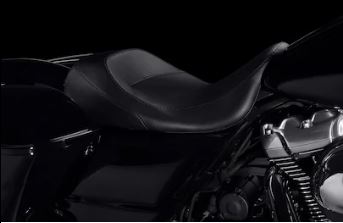

  • SEAT HEIGHT680 mm
  • MINIMUM GROUND CLEARANCE120 mm
  • LAKE (DEGREE)26
  • TRAIL170 mm
  • WHEELBASE1,625 mm
  • FRONT TIREBW 130/80 B 17 65 H
  • REAR TIREBW 180/65 B 16 81 H
  • FUEL CAPACITY22.7 l
  • OIL TANK CAPACITY4.9 l
  • SHIPPING WEIGHT354 kg
  • VEHICLE WEIGHT372 kg
  • LUGGAGE CAPACITY (VOLUME)0.064 m 3

Performance

  • ENGINE TORQUE TEST METHODEC 134/2014
  • ENGINE TORQUE 2150 Nm
  • ENGINE TORQUE (RPM)3,250
  • LEAN ANGLE, RIGHT (DEGREE)31
  • LEAN ANGLE, LEFT (DEGREE)29

Drive Train

  • PRIMARY DRIVEChain, Gear ratio: 34/46
  • GEAR RATIO (OVERALL) 1 SPEED9.593
  • GEAR RATIO (OVERALL) 2 SPEED6.65
  • GEAR RATIO (OVERALL) 3 SPEED4.938
  • GEAR RATIO (OVERALL) 4 SPEEDFour
  • GEAR RATIO (OVERALL) 5 SPEED3.407
  • GEAR RATIO (OVERALL) 6 SPEED2.875

Chassis

  • FRONT TYPE 6Impeller cast aluminum
  • BACK TYPEImpeller cast aluminum

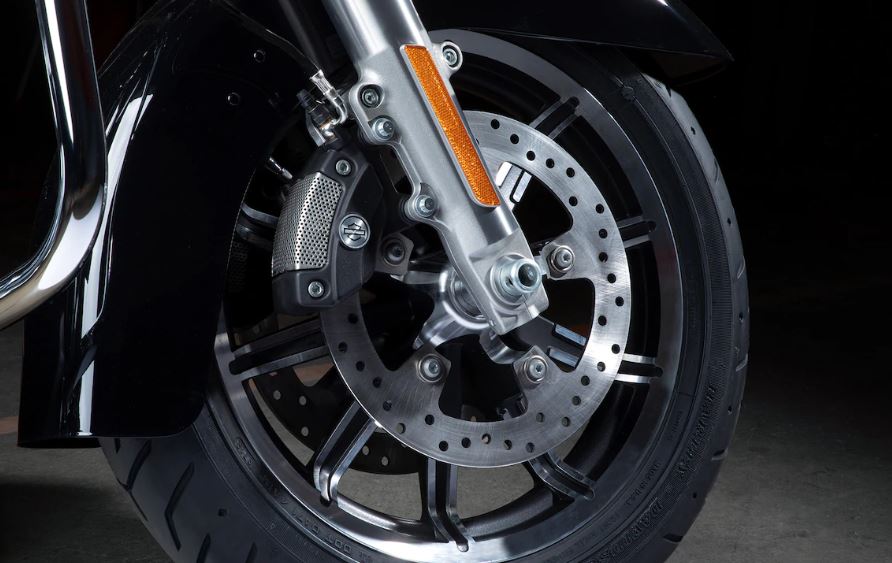

  • BRAKE, CALIPER TYPE32 mm, front and rear – fixed 4 piston

Electrical

  • LIGHT, INDICATOR LAMP 5 : High beam, running lamp, front fender running lamp, turn signal, neutral lamp, hydraulic warning light, engine check lamp, accessory, security system, gear indicator, battery, gear / rotational speed indication, fuel warning light, cruise control, ABS, fuel Level indicator

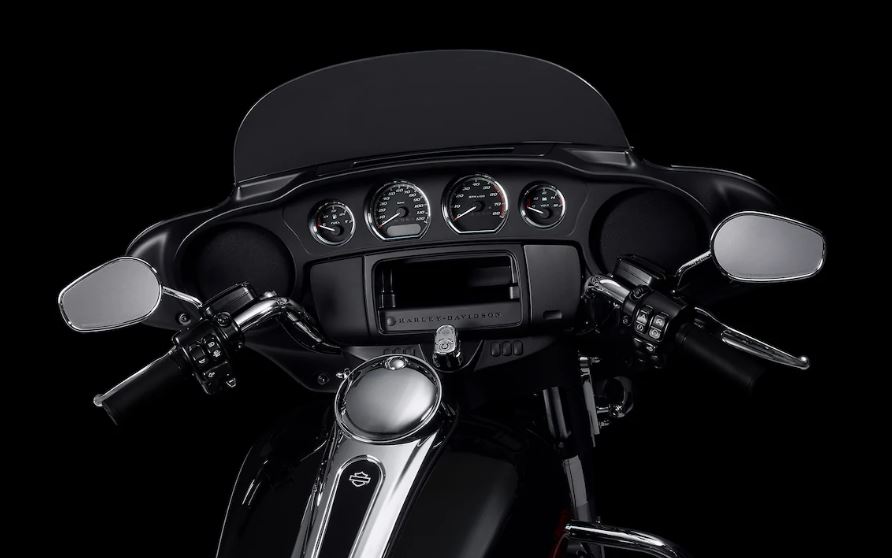

  • GAUGE :We have customized gauges more and more functionally. The display has odometer, trip A, trip B, fuel level indicator, gear display function, and the warning lamp display has become large.


Source : Harley Davidson Japan
